Rubber Hoses

Rubber hoses are available in UHMWPE, XLPE, Hypalon, Buna-N/Nitrile, EPDM, Chlorobutyl, Neoprene, SBR, and Natural compounds for the various product applications. Most rubber hoses are comprised of three layers, the first, and innermost is the tube, which is formed when rubber is forced through a profile to render a particular inner diameter (ID) size to contain the fluid being conveyed and resist being broken down by the products being conveyed. The second layer reinforces the tube and cover of the hose. This layer protects the products being conveyed from spilling in case of an internal or external increase of pressure. This layer consists of fabrics and/or wires that can be braided, spiraled, wrapped, or weaved around the tube of the hose. The third and outermost layer of the hose is the cover, providing protection of the tube and reinforcement from external damage, environmental deterioration, and UV rays. The cover may be color-coded to aid identification or improve aesthetics.

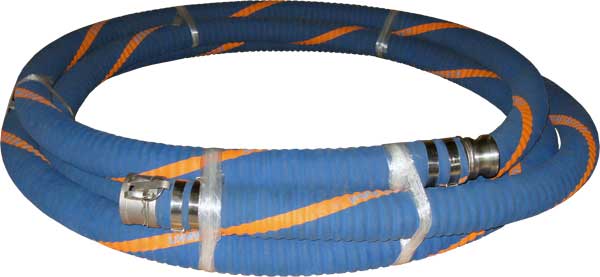

UHMWPE Hoses

Applications: UHMWPE chemical and acid suction & discharge transfer hose is resistant to 98% of chemicals.
Composition: UHMWPE (Ultra High Molecular Weight Polyethylene) tube with synthetic textile cords and highly flexible steel helix wire, with blue EPDM cover.
ID Sizes: 3/4″ to 6″.
Temperature Range: -22°F to +200°F.
Working Pressure: 240 PSI (16 bar).

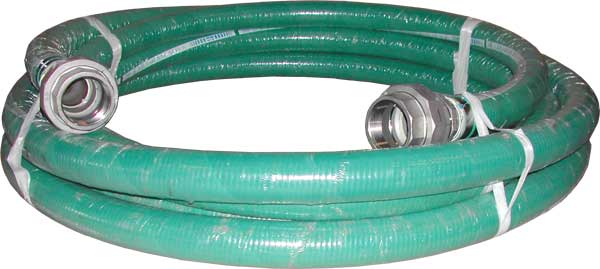

XLPE Hoses

Applications: Chemical and acid suction & discharge transfer hose resistant to 90% of chemicals.
Composition: XLPE (Cross-Linked High Polyethylene) tube with synthetic textile cords and highly flexible steel helix wire, with green EPDM cover.
ID Sizes: 3/4″ to 4″
Temperature Range: -40°F to +176°F.
Working Pressure: 240 PSI (16 bar).

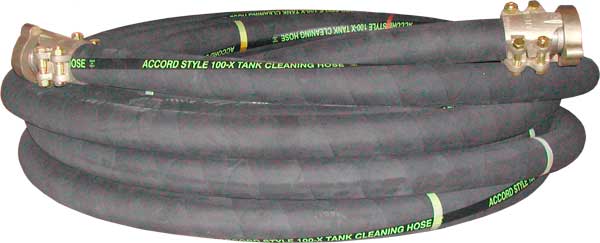

Tank Cleaning Hoses TCH-100

Applications: Accord Style 100 tank cleaning hose is a high-pressure hose for cleaning cargo and bulk storage tanks aboard tankers, barges, terminals, and refineries. ISSA-IMPA codes: 590661, 590662, 590663, and 590664
Composition: Rubber blended tube compounded to resist hot saltwater and many cleansing agents, and temperatures to +203°F (96°C)
ID Sizes: 1-1/2″ and 2″.
Temperature Range: -40°F to +203°F.
Working Pressure: 250 PSI (17 bar) with a 4: 1 safety factor, 1000 PSI (68 Bar) minimum burst pressure.

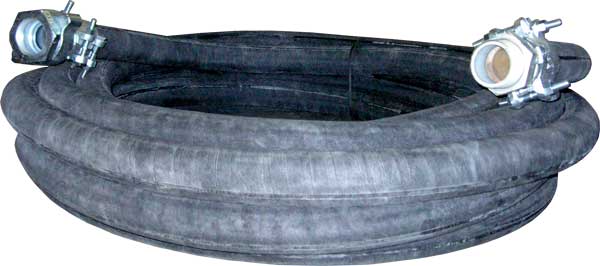

Steam Hoses

Applications: High-pressure steam hoses for saturated steam and superheated steam at 250 PSI. Steam hose is not for use with detergents.
Composition: EPDM or Chlorobutyl tube, with steel wire braids, and an EPDM blended pinpricked red or black smooth or wrapped finish.
ID Sizes: 1/2″ – 4″.
Temperature Range: -40°F to +406°F saturated or 450°F superheated.
Working Pressure: 250 PSI (17.2 bar) with a 10: 1 safety factor, 1000 PSI (172 Bar) minimum burst pressure.


Tank Truck Petroleum S&D Hoses

Applications: Tank truck petroleum suction and discharge hoses are designed for use in conveying gasoline, oil, and other petroleum products of up to 50% aromatic content.
Composition: Black smooth conductive nitrile rubber tube, reinforced with high-strength synthetic cords, flexible steel helix wire, and black ozone resistant cover.
ID Sizes: 1-1/2″ to 6″.
Temperature Range: -22°F to +176°F.
Working Pressure: 240 PSI (16 bar). •• Note: available in 300 PSI (20.7 bar) working pressure.


OS&D Dock Hoses

Applications: Oil suction and discharge transfer dock hose are used in transferring petroleum products to and from tankers, barges, and storage tanks.
Composition: Seamless nitrile rubber tube, reinforced with high-strength polyester cords, steel helix wire, and black neoprene cover.
ID Sizes: 3″ to 12″.
Temperature Range: -40°F to +180°F.
Working Pressure: up to 250 PSI (17.2 bar).

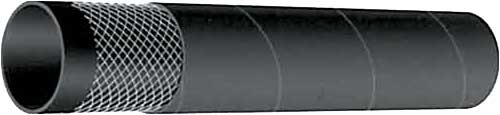

Petroleum Discharge Hoses

Applications: Petroleum discharge hose is designed for discharging petroleum, gasoline, and oil products used on trucks, docks, or barges where a soft wall hose is required.
Composition: Black smooth conductive nitrile rubber tube, reinforced with high strength synthetic cord plus anti-static wire with neoprene cover
ID Sizes: 1-1/2″ to 6″.
Temperature Range: -22°F to +176°F.
Working Pressure: 150 PSI (10.3 bar).

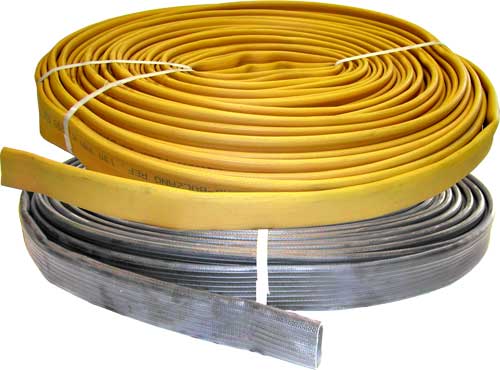

Layflat Petroleum Discharge Hoses

Applications: Petroleum discharge lay flat hose is designed for the delivery of fluids, gases, resistance to oil, grease, acids, bases, salts, sewage, and seawater.
Composition: Black or yellow nitrile/PVC blend tube and cover, with reinforced polyester cords with ribbed oil, abrasion, and weather-resistant cover
ID Sizes: 1-1/2″ to 6″.
Temperature Range: -4°F to +176°F.
Working Pressure: 150 PSI (10.3 bar).

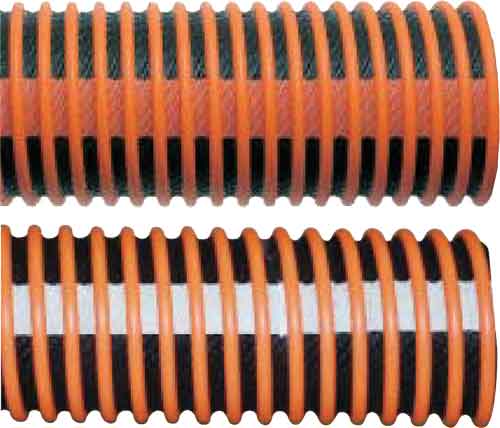

Petroleum Drop Hoses

Applications: Ultra-lightweight flexible petroleum drop hose combining rubber and PVC for excellent vacuum capabilities and abrasion resistance.
Composition: One-piece nitrile seamless static dissipating tube and cover, with synthetic fabric reinforcement, and PVC Helix and with or without static conductive wire.
ID Sizes: 2″ to 6″.
Temperature Range: -40°F to +150°F.
Working Pressure: 100 PSI (10.3 bar).

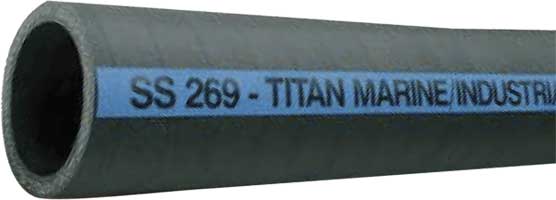

Marine Exhaust Hoses

Applications: Marine exhaust hose is a high-pressure, multi-purpose flexible connection to transfer wet exhaust. Resists high temperatures found in marine engine compartments.
Composition: Black seamless nitrile blend tube reinforced with multiple plies of polyester with helix wire, and with nitrile cover.
ID Sizes: 1-1/8″ – 12-3/4″.
Temperature Range: -40°F to +200°F saturated or 450°F superheated.
Working Pressure: 100 PSI (6.9 bar).


General Service Air Hose

Applications: General service air and water hose are ideal for general air, water service, and oil mist lubricating lines. Higher working pressures are available upon request.
Composition: Black EPDM rubber tube, reinforced with high-strength braided nylon cords, flexible steel helix wire, and black ozone resistant cover.
ID Sizes: 1/4″ to 2″.
Temperature Range: -40°F to +200°F.
Working Pressure: 300 PSI (20.7 bar).
•• Note: multipurpose air hose is available with a nitrile blended tube for oil resistance.


Water Suction & Discharge Hoses

Applications: General service water suction hose for use in construction, mining, and agriculture.
Composition: Black EPDM blended rubber tube, reinforced with spiraled high tensile textile cords and double steel helix wire, with EPDM cover.
ID Sizes: 1″ to 12″.
Temperature Range: -40°F to +185°F.
Working Pressure: up to 150 PSI (10.3 bar).

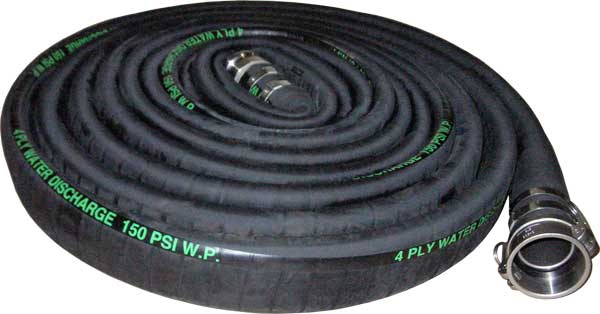

Water Discharge Hoses

Applications: The water discharge hose is available in 2 plies and 4 plies for more durability.
Composition: Black EPDM tube, reinforced with high strength textile cords with EPDM cover.
ID Sizes: 1-1/2″ to 12″.
Temperature Range: -22°F to +176°F.
Working Pressure: 150 PSI (10.3 bar).

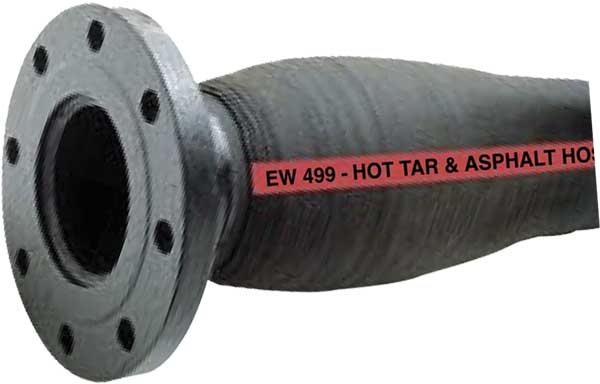

Hot Tar & Asphalt Hoses

Applications: Recommended for hot tar, asphalt, hot oil, and other unrefined petroleum products.
Composition: Black seamless heat resistant nitrile rubber tube, reinforced with multiple plies of polyester and helix wire with Hypalon cover.
ID Sizes: 2″ to 8″.
Temperature Range: -25°F to +350°F.
Working Pressure: 150 PSI & 200 PSI.

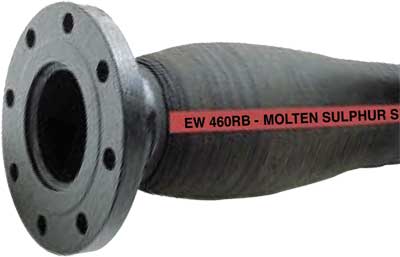

Molten Sulfur Hoses

Applications: Heavy duty modified rough bore construction molten sulfur dock hose can withstand temperatures up to handle 300°F.
Composition: Black EPDM tube, reinforced with high strength tire cord, helix wire, and EPDM cover.
ID Sizes: 6″ to 10″.
Temperature Range: -40°F to +300°F.
Working Pressure: 200 PSI (13.8 bar).

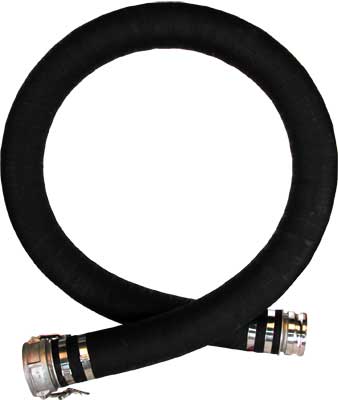

Material Handling Hoses

Applications: Suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.
Composition: Black smooth conductive abrasion-resistant natural rubber tube, reinforced with high strength synthetic cord plus flexible steel helix wire with SBR/natural rubber blended cover.
ID Sizes: 2″ to 8″.
Temperature Range: -22°F to +176°F.
Working Pressure: 150 PSI 2″ to 4″; 75 PSI 6″ to 8″

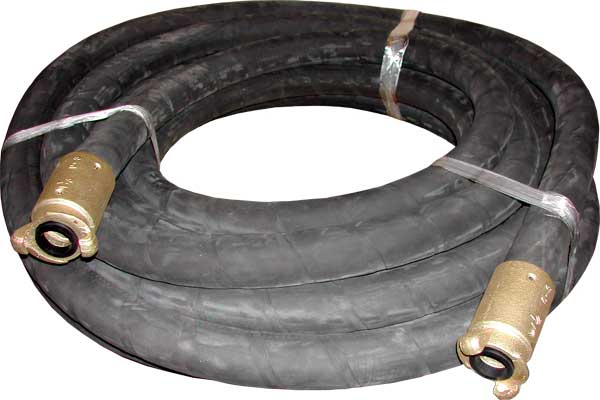

Sand Blast Hoses

Applications: Designed to convey abrasives, sand, and shot blast material.
Composition: Black static conducting natural rubber tube offering excellent abrasion resistance with high tensile textile cord reinforcement available in 2 or 4 plies, and black or green, conductive SBR/NR blend abrasion and ozone resistant – pinpricked cover.
ID Sizes: 1/2″ to 2″.
Temperature Range: -22°F to +176°F.
Working Pressure: 180 PSI (12.4 bar).
